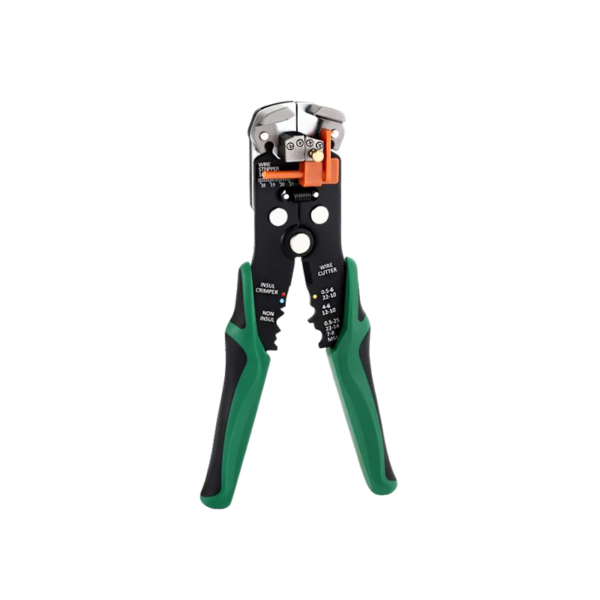

Multi-Function Crimping Tool

Functions :
• Strip & cut wire from 8-30 AWG (0.2-8mm²)
• With additional swivel knob, adjust to strip wire maximum
• 8 AWG (8mm²), minimum 30 AWG (0.05mm²)
• Crimp non-insulated terminals 10-22 AWG (0.5 to 6.0 mm²)
• Crimp insulated terminals 10-22 AWG (0.5 to 6.0 mm²)
• Crimp auto ignition terminals 7 to 8mm

Material :
• Strip part : Powder metallurgy
• Body : S50C (HRC45˚)
• Handle : TPR

Size : L212mm x W110mm x H31mm

Weight : 343 g
