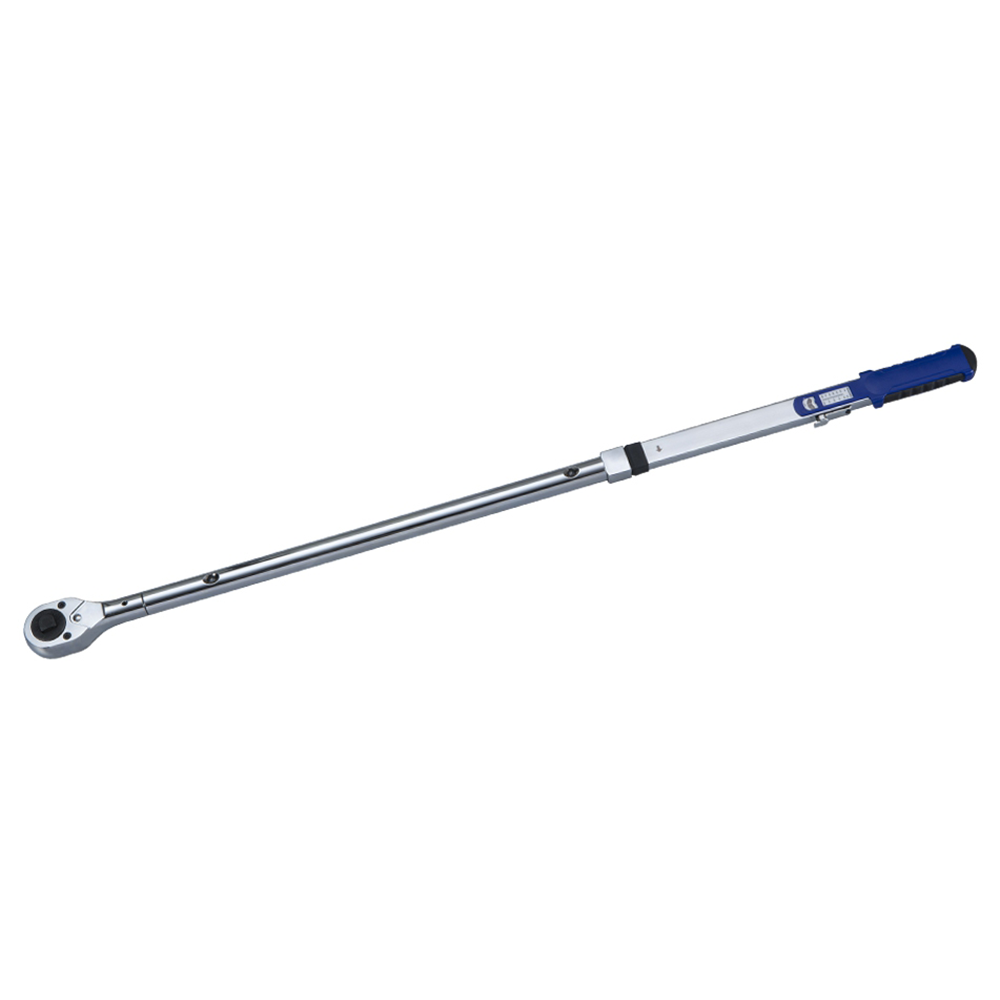

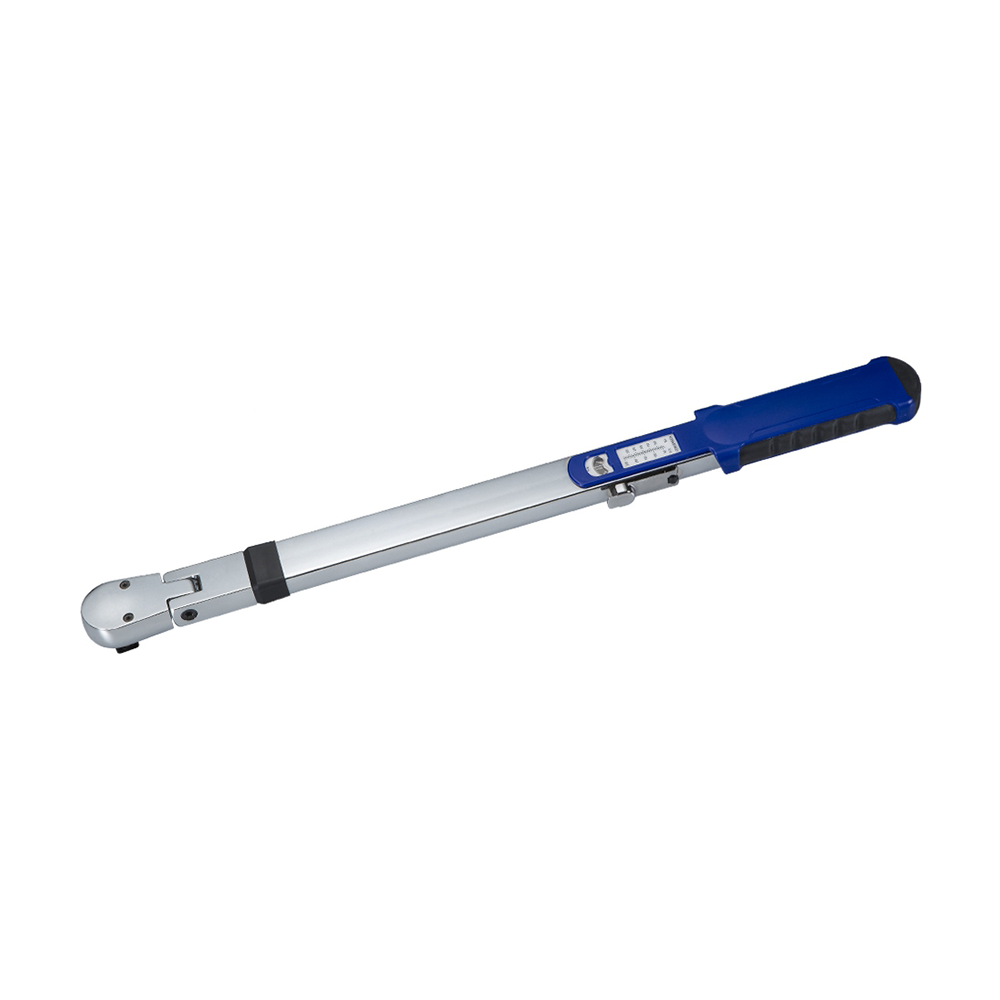

Flexible Split-Beam Torque Wrench

Flexible Split-Beam Torque Wrench

• Torque of tolerance: unflexed +-4%; flexed +-4~+-10%.
• Non coil-spring mechanism and no need to return to zero after use, which brings longer tool life.
• Knob-type torque adjustment is faster and more energy-efficient.
• Toothed hinge cover contains the lock function, which can prevent setting from being changed accidentally.

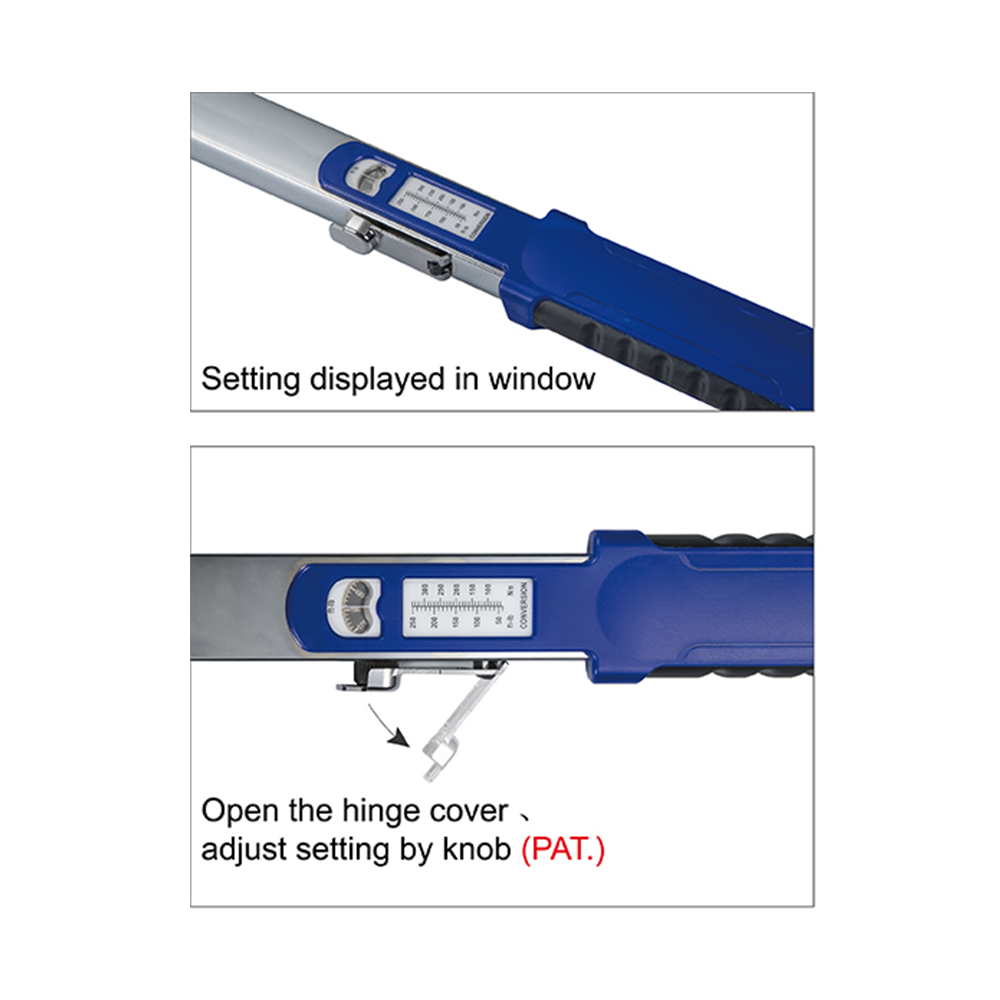

• Torque setting can be easily read through the window scale.
• Conversion table to Nm displayed on the handle.
• TPR cushion handle provides comfort, easy control and oil-resistance.

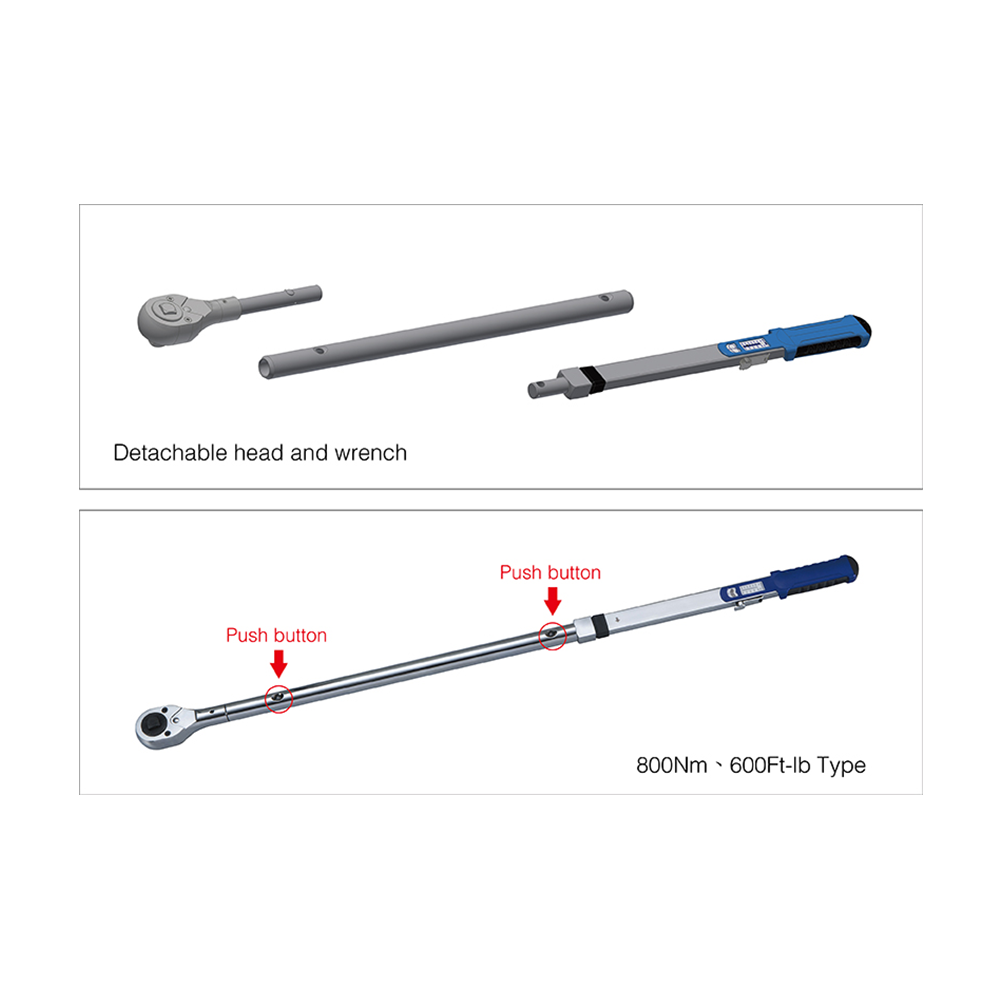

• Torque measurement in a clockwise direction only with 15 degree flex head; but 3/4″ with detachable fixed ratchet applied to both clockwise and counterclockwise directions.
• Loud click sound strong impulse when required torque is reached.
• Quality meets DIN ISO 6789 & ASME B107.300-2010.

Add to Inquiry Cart

描述

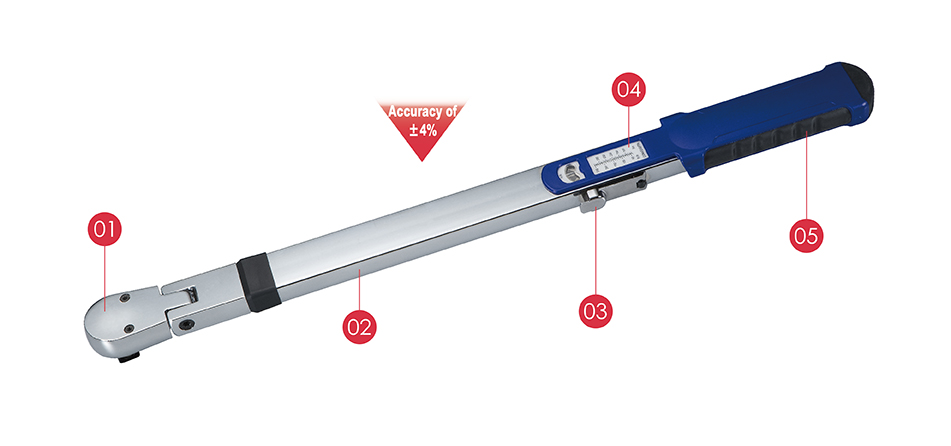

01  Ratchet Head :
A highly robust ratchet mechanism. Repair kit for inner spare parts of ratchet head is available.

02  Reliable Mechanism :

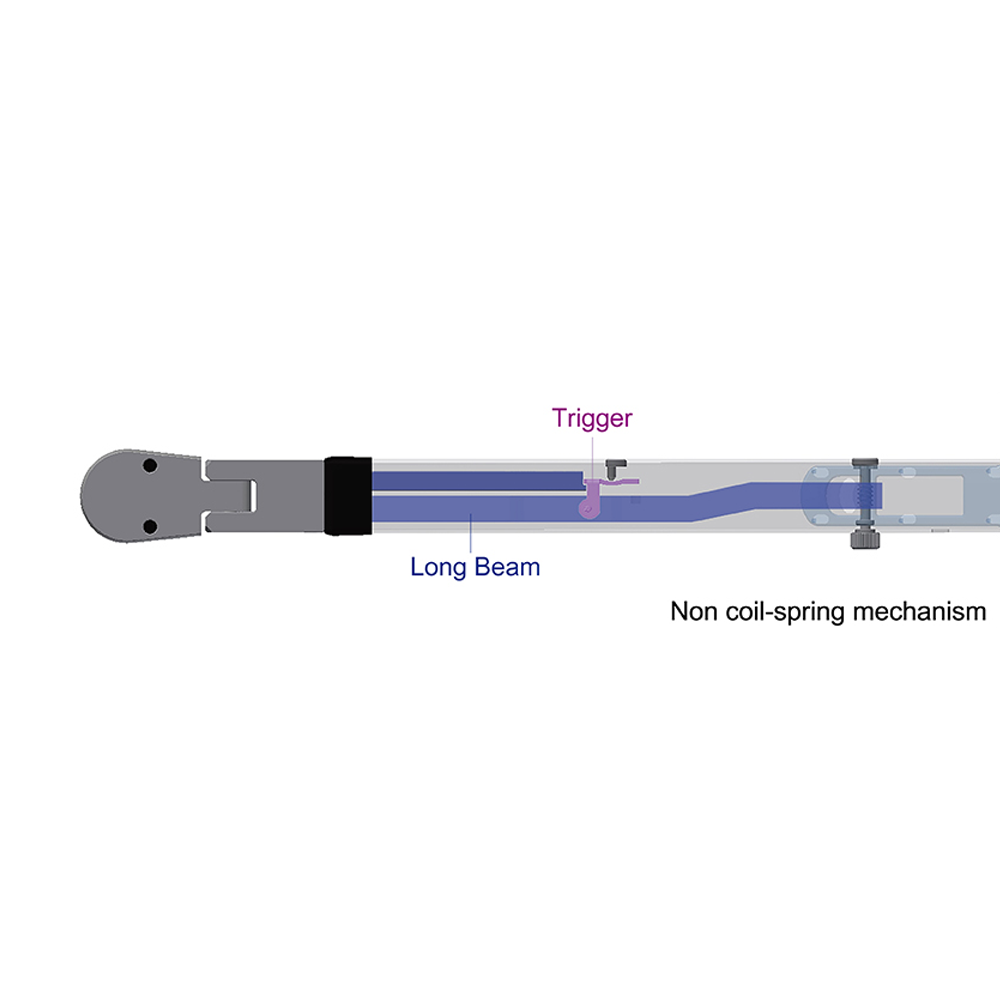

Non coil-spring mechanism and no need to return to zero after use, which brings longer tool life.

03  Hinge Cover :
Toothed guard contains the lock function, which can prevent setting from being changed accidentally.

04  The window Scale :
The conversion table to N.m displayed on the handle. The main reading window scale for single unit while operation.

05  Grip Handle :
TPR cushion handle provides confort, easy control and oil-resistance.

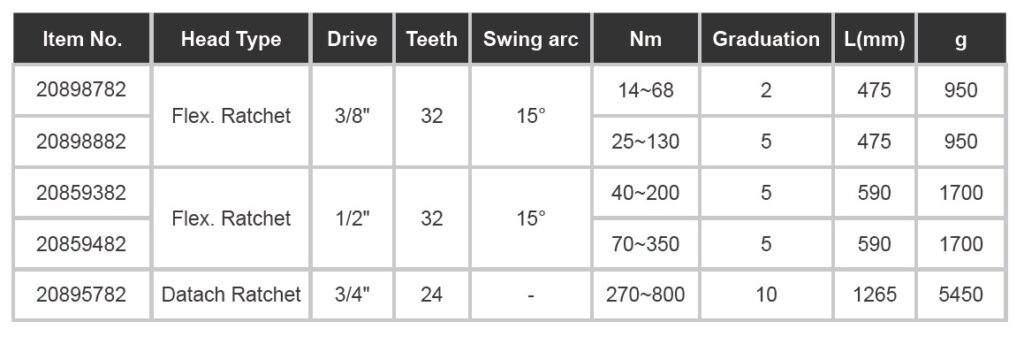

Specifications : Metric

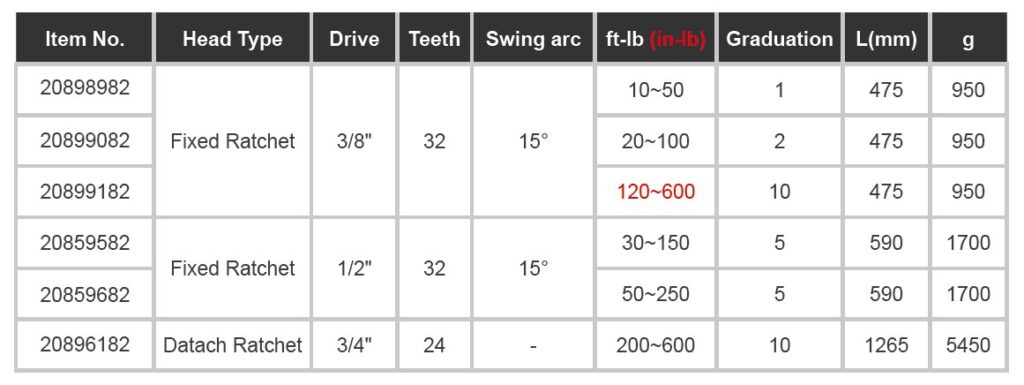

Specifications : SAE
